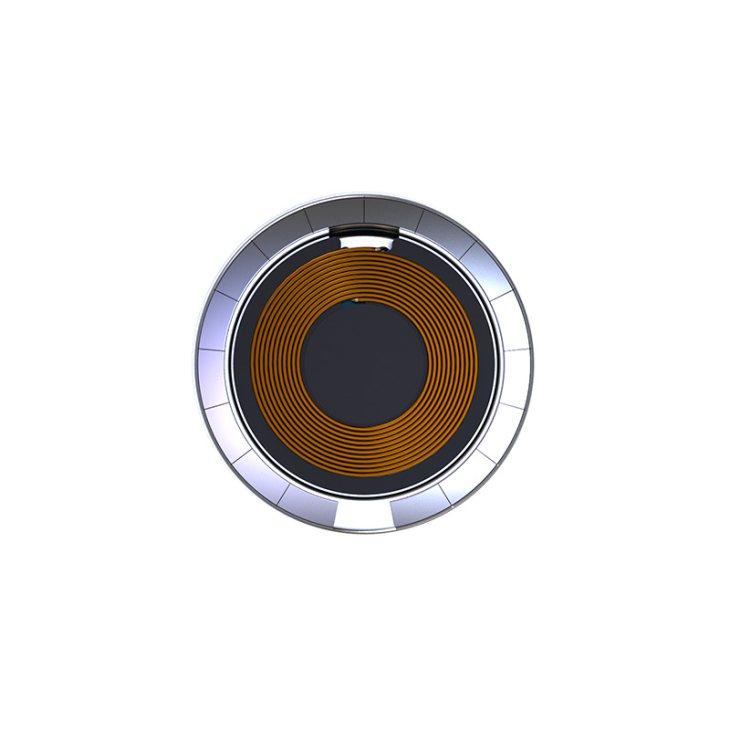

Qi2 MPP 15w TX Magnetic Module (7-9N)

  • Input Protocol : BC1.2/PD/QC Protocol function
  • Input: USB-C Mode 9V-2.22A/5V-3A , DC mode: 9V ≥2.22A
  • Output mode: MPP 15W/BPP 5W
  • Dimension: Φ58.56  mm T:7.9mm
  • Weight:50 ± 2g

Product Specification

PartNumberPower input
Qi standard
wireless charging protocal
Output power
DownloadInquiry
QI2QT-6135A1C1-XB-1 (Black cover)20W2.0MPP, BPP15W SPICE
QI2QT-6135B1 (without cover)20W2.0MPP, BPP15W SPICE
QI2QT-6135A1C1-XW-120W2.0MPP, BPP15W SPICE
QI2QT-6135A1C1-XB-1 (Black cover)
20W
2.0
MPP, BPP
15W
SPICE
QI2QT-6135B1 (without cover)
20W
2.0
MPP, BPP
15W
SPICE
QI2QT-6135A1C1-XW-1
20W
2.0
MPP, BPP
15W
SPICE
