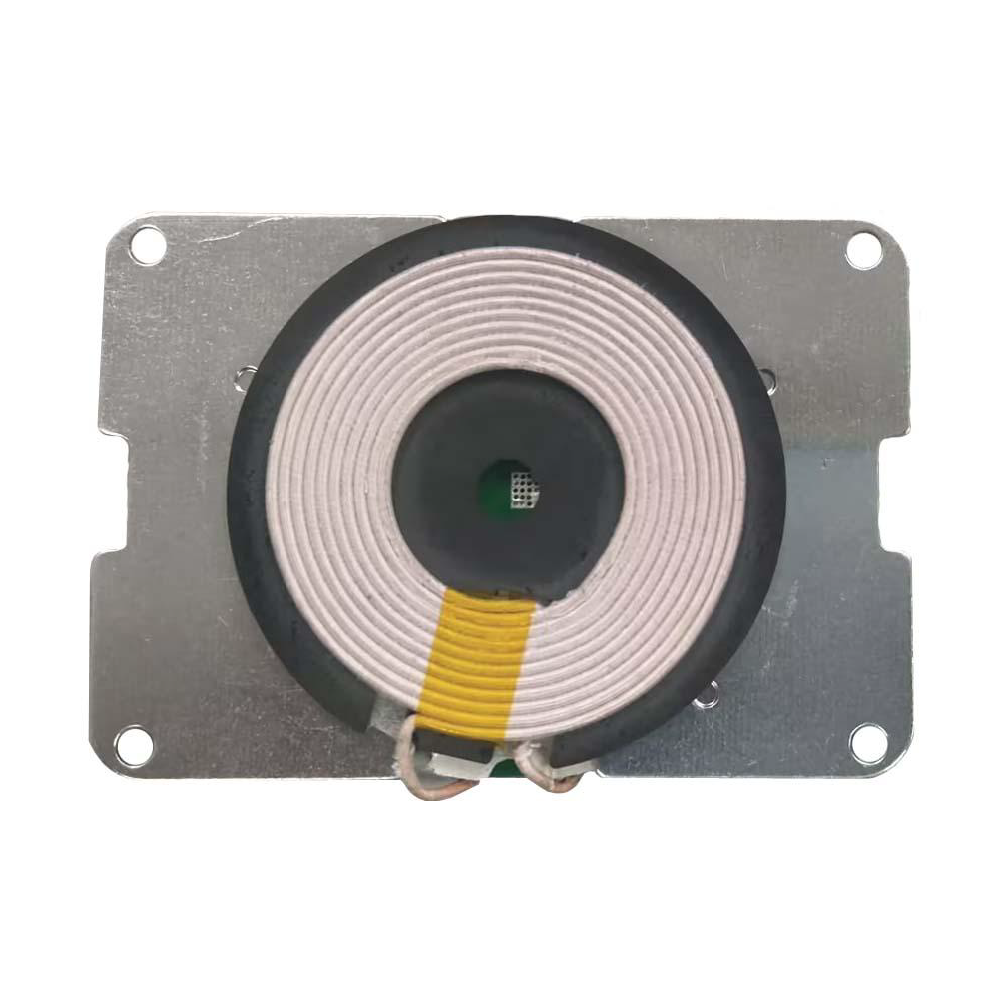

Qi 1.2.4 EPP 15W wireless charger of TX module (6104)

• Protocol: BPP+EPP+PPDE (Qi 1.2.4)
• Input power: USB PD supports 5V/2A, 9V/3A, 12V/2.0A; DC 12V/2.0A
• Output power: 15W Max
• Dimension: L72±0.5mm ※ W50±0.5mm ※ T6±0.5mm
• Efficiency: 83% ref at DC15V input
• Protection: OVP/UVP/OCP/OTP/OSP
• Weight: 25±2 g
